Compound die stamping is a highly efficient and precise metal forming process within the metal stamping industry, designed to produce flat, simple, and high-precision parts in a single press stroke. This technique combines multiple operations—such as blanking, piercing, and forming—into one die, making it ideal for manufacturing components like washers, brackets, and clips in industries such as automotive, electronics, and aerospace. As outlined by Metal Stamping Atlas, compound die stamping is distinguished for its ability to streamline production while maintaining tight tolerances and minimizing material waste. This article provides a detailed exploration of how compound die stamping is used in the metal stamping industry, covering its mechanics, applications, and advantages.
Understanding Compound Die Stamping
Compound die stamping is a metal stamping process that integrates several operations into a single die, performed simultaneously in one press stroke. Unlike progressive die stamping, which moves a metal strip through multiple stations, or transfer die stamping, which transfers parts between stations, compound die stamping completes all required operations—typically cutting and forming—in a single action. According to Metal Stamping Atlas, this process is particularly suited for producing simple, flat parts with high precision, such as washers, gaskets, and retainers, where tight tolerances (e.g., ±0.01 mm) are critical. The process uses a compound die, a sophisticated tool that combines punches and dies to cut and shape the metal sheet in one cycle, offering efficiency and repeatability for high-volume production.
Mechanics of Compound Die Stamping
Compound die stamping involves a series of carefully coordinated steps and specialized equipment to produce high-quality parts in a single operation. Below is a detailed breakdown of the process within the metal stamping industry.
1. Design and Engineering
The process starts with precise design and engineering to define the part’s specifications and the compound die’s configuration.
- Part Design: Engineers use CAD software (e.g., AutoCAD, SolidWorks) to create a detailed model of the part, specifying dimensions, tolerances, and features like holes, edges, or slight bends. The design focuses on simple, flat geometries, as compound die stamping is less suited for complex 3D shapes.
- Die Design: The compound die is designed to perform multiple operations (e.g., blanking and piercing) in one stroke. It consists of a punch assembly (for cutting or forming) and a die block (with cavities for shaping), integrated into a single tool. The design ensures precise alignment to avoid defects like burrs or misalignment.
- Considerations: Engineers account for material properties (e.g., ductility, thickness), die clearance (typically 5–10% of material thickness), and press force to prevent issues like tearing or excessive springback. Finite element analysis (FEA) may be used to simulate material behavior and optimize die design.
2. Material Selection and Preparation
Selecting the appropriate metal and preparing it for stamping are crucial for achieving high-quality results.
- Suitable Materials: Common metals include:
- Steel: Low-carbon steel (e.g., 1008, 1010) for cost-effective parts like washers or brackets.
- Stainless Steel: Corrosion-resistant for durable components in electronics or medical applications.
- Aluminum: Lightweight and ductile (e.g., Aluminum 3003) for aerospace or consumer goods.
- Brass/Copper: High conductivity for electrical components like terminals.
- Material Form: The process typically uses flat sheet metal blanks or coils, with thicknesses ranging from 0.1–3 mm, though thicker materials (up to 6 mm) can be used for specific applications.
- Preparation:
- Blanking: If starting with a coil, a preliminary blanking operation cuts the sheet into appropriately sized blanks.
- Cleaning: The blank is cleaned to remove oils, dirt, or oxides, ensuring a smooth surface for stamping.
- Lubrication: Lubricants (e.g., oil-based or polymer-based) are applied to reduce friction, prevent galling, and enhance material flow.
3. Compound Die Stamping Process
The core of compound die stamping involves a single press stroke that performs all necessary operations to produce the finished part.
- Equipment:

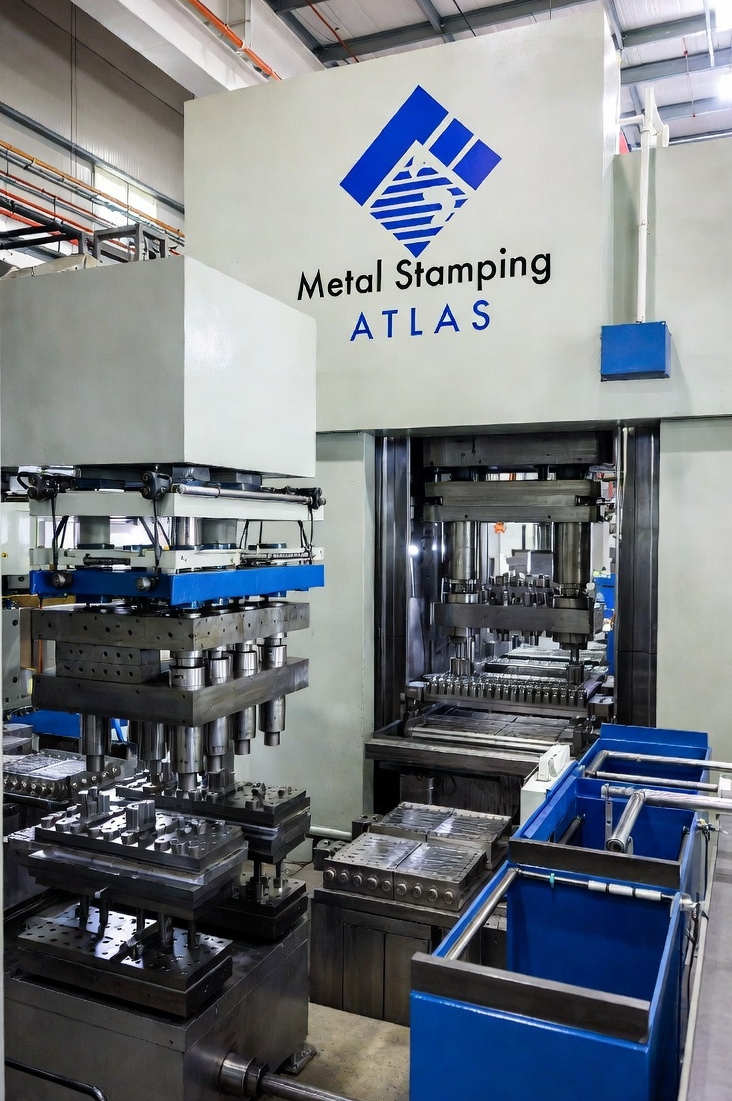

- Stamping Press: Mechanical or hydraulic presses (50–500 tons) deliver the force needed for compound die stamping. Mechanical presses are preferred for their high speed (30–100 strokes per minute), while hydraulic presses offer precise force control for thicker materials.
- Compound Die: A single die integrates multiple punches and cavities to perform operations like blanking (cutting the outer shape), piercing (creating holes), and minor forming (e.g., slight bends or embossing).
- Feeding System: Automated feeders or manual placement position the blank accurately in the die.
- Process Steps:
- Blank Positioning: The metal blank is placed over the die, aligned precisely using guides or stops to ensure accurate operation.
- Stamping: The press activates, and the compound die closes, with punches simultaneously cutting the outer shape (blanking), piercing holes, and forming features in one stroke. Forces typically range from 10–100 MPa, depending on material and thickness.
- Plastic Deformation: The metal undergoes plastic deformation as the punch exceeds the material’s yield strength, shaping it to match the die’s contours.
- Ejection: The finished part is ejected from the die, often using spring-loaded ejectors, while scrap (e.g., pierced slugs) is collected for recycling.
4. Post-Processing and Finishing
After stamping, parts undergo additional steps to ensure quality and functionality.
- Inspection:
- Visual Inspection: Checks for defects like burrs, cracks, or misalignment.
- Measurement: Tools like calipers, coordinate measuring machines (CMMs), or laser scanners verify dimensions and tolerances (e.g., ±0.01 mm), ensuring compliance with standards like ISO 2768.
- Finishing:
- Deburring: Removes burrs or sharp edges using tumbling, vibratory finishing, or grinding.
- Surface Treatment: Plating (e.g., zinc, nickel), powder coating, or polishing enhances corrosion resistance or aesthetics.
- Cleaning: Removes residual lubricants or debris to prepare parts for assembly or packaging.
- Packaging: Parts are packaged to prevent damage during transport or storage.
Applications of Compound Die Stamping
Compound die stamping is widely used in the metal stamping industry for producing simple, flat parts with high precision and repeatability. Key applications include:
- Automotive: Washers, gaskets, and brackets used in engine assemblies, suspensions, or interior components, where flatness and tight tolerances are critical. [](https://metalstampingatlas.com/processes)
- Electronics: Electrical terminals, connectors, and shielding plates, leveraging materials like brass or copper for conductivity and precision.
- Aerospace: Flat, lightweight components like mounting plates or spacers, often made from aluminum or stainless steel for strength and corrosion resistance.
- Consumer Goods: Hardware like hinges, clips, and fasteners for appliances or furniture, requiring consistent quality and cost efficiency.
- Medical: Precision components like retainers or seals for medical devices, benefiting from stainless steel’s biocompatibility and the process’s accuracy.
Benefits of Compound Die Stamping
- High Efficiency: Combines multiple operations (e.g., blanking, piercing) in a single stroke, reducing cycle time and labor costs compared to multi-step processes.
- Precision and Repeatability: Achieves tight tolerances (±0.01–0.05 mm), ideal for flat parts requiring consistent dimensions.
- Cost-Effective for High Volumes: Minimizes tooling changes and setup time, making it economical for large production runs of simple parts.
- Material Efficiency: Produces minimal scrap by integrating cutting and forming in one operation, optimizing material usage.
- Versatility: Works with various metals (e.g., steel, aluminum, brass) and thicknesses, supporting diverse applications.
Challenges and Considerations
- Limited Complexity: Best suited for simple, flat parts; complex 3D shapes or deep draws require progressive or transfer die stamping.
- Tooling Costs: Initial die design and fabrication are expensive, making compound die stamping less viable for low-volume runs.
- Material Limitations: Requires ductile metals to avoid cracking; high-strength materials (e.g., advanced high-strength steels) may increase die wear.
- Die Wear: High contact pressures (up to 100 MPa) at the punch-die interface can cause wear, necessitating corrosion-resistant dies (e.g., chromium-alloyed tool steel) and regular maintenance.
- Alignment Precision: Misalignment in the compound die can lead to defects like uneven cuts or burrs, requiring precise setup and quality control.
Compound die stamping is a vital process in the metal stamping industry, offering an efficient and precise method for producing simple, flat components in a single press stroke. As highlighted by Metal Stamping Atlas, its ability to combine multiple operations—such as blanking and piercing—into one die makes it ideal for high-volume production of parts like washers, brackets, and connectors. With applications spanning automotive, electronics, aerospace, and more, compound die stamping delivers tight tolerances, minimal waste, and cost efficiency. Despite challenges like high tooling costs and limitations on part complexity, its streamlined approach and repeatability make it a cornerstone of modern metal stamping. For manufacturers seeking high-quality, flat components, partnering with experienced stamping providers ensures optimal results tailored to specific needs.
